Genie GS-3390, GS-3384, GS-4390 & GS-5390 Maintenance Guide

In the world of rough terrain (RT) aerial work platforms, the Genie GS™ series—specifically the GS-3384, GS-3390, GS-4390, and GS-5390—stands as the industry standard for durability and reach. Whether you are tackling a massive construction site with a GS-5390 or navigating tighter spaces with a GS-3384, keeping these machines in peak operating condition is essential for job site safety and profitability.

At Reliable Equipment Parts, we understand that downtime is the enemy. To help you maintain your fleet, we've put together this comprehensive guide covering essential service reminders, technical tips, and the critical part numbers you need to keep your Genie scissor lifts moving.

1. Engine Maintenance: The Heart of the Machine

The rough terrain capability of these units relies heavily on their power plants. Depending on your serial number, your machine likely utilizes a Deutz (D2.9L4 or D2011L03i) or a Ford (MSG-425 or LRG-425) engine.

Service Kits and Interval Reminders

Routine engine maintenance should never be a guessing game. For modern units, Genie offers convenient 250-hour engine service kits that bundle the essentials:

• Deutz D2.9L4 Engine Kit: Part No. 1278708GT.

• Ford MSG-425 Engine Kit: Part No. 1278709GT.

Critical Filtration

Contaminated fuel and air are the primary causes of premature engine wear.

• Air Filters: For Deutz models, the primary air filter element (77295GT) should be inspected daily in dusty environments.

• Fuel Filters: For Deutz D2.9L4 models, ensure you are using the correct fuel filter (214228GT) and fuel pre-filter (1261239GT) to protect the high-pressure fuel system.

• Oil Filters: For Ford MSG-425 models, keep the oil clean with Part No. 119139GT.

Pro Tip: Tier 4 Compliance

If you are operating a newer Deutz D2.9L4, be aware that Tier 4 regulations require you to provide your engine serial number when ordering specific engine replacement parts. This ensures that the ECM and injection components are perfectly matched to your specific emissions profile.

2. Hydraulic System Health: Manifolds, Filters, and Hoses

The hydraulic system drives every critical function, from the four-wheel-drive traction to the scissor lift elevation.

Filtration is Your First Line of Defense

Hydraulic systems are incredibly sensitive to particulate matter. These machines utilize multiple filter stages:

• High-Pressure Filter: Specifically designed to protect sensitive valves. Use Part No. 71201GT for the GS-5390.

• Medium Pressure Filter: Often found on the return or charge lines. Part No. 1267807GT is a common assembly for later models.

• Case Drain and Return Filters: Elements like the 131323GT (10 micron) are vital for removing the fine silt that can wear out piston pumps.

Hose Inspection and the Arctic Package

Hydraulic hoses like the lift cylinder hoses (131351GT) or drive motor hoses (87049GT) are subject to immense pressure and constant flexing. Inspect for "weeping" at the fittings or cracks in the outer jacket.

• Service Tip: If you operate in extreme cold, ensure you use the low-temp (Arctic) hose variants, such as Part No. 131070GT, which are designed to remain flexible in sub-zero temperatures.

3. Scissor Stack and Platform Integrity

The scissor stack is the backbone of your lift. Wear and tear here can lead to platform "sway" or jerky lifting movements.

Wear Pads and Link Sliders

As the scissor arms extend, they slide along tracks on the chassis and platform. This movement is buffered by wear pads.

• Link Slider Wear Pads: Part No. 112004GT (upper) and 71126GT (bottom) are critical for smooth operation. If these pads wear down to the metal, you risk damaging the main structural weldments.

• Lubrication: While many bearings are "self-lubricating," always check your pivot pins. Many models use heavy-duty bearings like the 65881GT (1.75 x 2 x 2.25) in the main cylinder pivots.

Load Sensing and Safety

Modern safety regulations require robust overload protection.

• Angle Sensors: The angle sensor assembly (1293266GT) tells the machine's computer exactly where the stack is in its lift cycle.

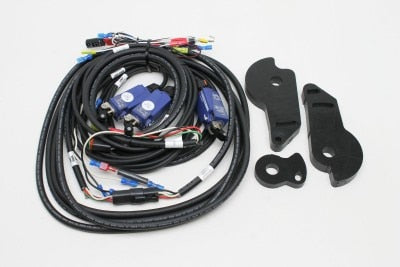

• Load Sense Kits: For CE-compliant models, specific kits like 131889GT or 131890GT (GS-5390) are required to maintain legal operation.

4. Drive Chassis and Rough Terrain Capability

What separates an RT scissor lift from a standard slab lift is the drive system.

Drive Hubs and Motors

Each wheel is powered by a torque hub and a hydraulic motor.

• Torque Hubs: The 101584GT wheel drive is a 57:1 gear reducer. We stock complete seal kits (1286602GT) and bearing kits (1286603GT) for these hubs so you can rebuild them instead of replacing the entire unit.

• Oscillating Axles: To maintain traction on uneven ground, many GS-90 models feature an oscillating steer axle (1262774GT). Check the pivot bushings and hydraulic oscillate cylinders regularly to ensure the wheels stay in contact with the ground.

Tires: Foam-Filled vs. High Flotation

Most Genie RT scissors use foam-filled tires to prevent flats on rough job sites.

• Replacement Tip: If you replace one tire, it is often recommended to replace them in pairs or sets of four to ensure even traction and machine leveling. Common assemblies include the 1258762GT (foam-filled right-hand).

• Lug Nuts: Never overlook the basics. Ensure lug nuts (54627GT) are torqued to factory specifications daily.

5. Controls and Electrical Components

The operator's interface is the most used (and abused) part of the machine.

The Joystick Controller

The joystick is the brain of the platform.

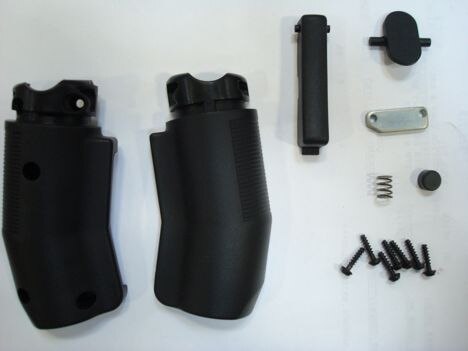

• Complete Handle Sets: Use Part No. 97014GT for a complete replacement.

• Protective Boots: A simple $20 boot (97015GT) can save a $500 controller by keeping rain and dust out of the electronics.

Ground Controls and Hour Meters

Tracking your service intervals requires a functioning hour meter. Older units used standard LCD meters (56100GT), while newer Tier 4 units utilize a sophisticated DP200 display assembly (1251984GT).

6. Accessories: Adding Value to Your Machine

One of the reasons the Genie GS-series is so popular is its versatility. You can customize these machines with various factory-authorized accessories:

• Generators: Need power on the platform? The hydraulic generator kit (112045GT) provides AC power without needing a separate engine.

• Cold Start Packages: If you are working in northern climates, a battery blanket (28853GT) and an oil pan heater (128274GT) are non-negotiable for winter reliability.

• Pipe Cradles: For mechanical contractors, the pipe cradle kit (131627GT) allows for the safe transport of materials on the platform.

• Decals: Safety is paramount. If your decals are faded or missing, you are out of compliance. We provide everything from "Danger" words to "Symbols" kits for all global regions.

Why Choose Reliable Equipment Parts for Your Genie Scissor Lift?

Finding the right part for a machine with a 20-year production run can be daunting. As seen in our comprehensive part number vs. serial number tables, a single component like an oil cooler hose can change three times within a single model year.

The Reliable Advantage:

• Massive Inventory: We stock thousands of Genie-specific part numbers, from common filters to entire scissor arms.

• Expert Identification: We use the same factory resources mentioned in this guide to ensure you get the right part for your specific serial number range.

• Fast Shipping: We know that a machine sitting in the dirt is costing you money. We prioritize getting your parts out the door immediately.

Conclusion

A well-maintained Genie GS-3384, 3390, 4390, or 5390 is a beast of a machine that will serve your business for decades. By following these service reminders and using high-quality replacement parts, you ensure the safety of your operators and the longevity of your investment.

Ready to get started? Use our search bar above with your part numbers (like 1278708GT or 97014GT) to find exactly what you need. If you're unsure of your serial number breakpoint, contact our expert support team today!
