Genie Z-45/25 IC Fault Codes: Troubleshooting Guide

Operating a Genie Z-45/25 or Z-45/25J IC articulating boom lift is a study in precision engineering, but even the most reliable machines can occasionally signal a fault. At Reliable Equipment Parts, we know that when a machine stops on a busy job site, time is literally money. Understanding the diagnostic systems and having the correct replacement components for your specific serial number is the best way to minimize downtime.

This guide explores the diagnostic systems of the Z-45/25 family, the most common areas where error codes arise, and the precise part numbers—drawn directly from official parts documentation—needed to resolve them.

The Diagnostic Interface: Decoding the Language of Your Lift

Modern Genie Z-45/25 models are equipped with sophisticated control systems that communicate status through a variety of interfaces. Depending on your machine's build date and serial number, you will interact with one of two primary diagnostic tools:

• The LCD Readout Screen: Newer Tier 4 models, such as those with the Deutz D2.9L4 engine, utilize the 1251984GT Display Assembly located in the ground control box. This screen provides real-time data and alphanumeric fault codes that pinpoint the exact sensor or circuit in distress.

• Indicator Lights and Decals: Machines with hour-meter-only configurations rely on a series of flashing indicator lights. For these models, referencing the 82243GT Fault Code Decal is essential. This decal acts as a "Rosetta Stone," translating sequences of blinks into actionable data.

Common Engine Fault Codes and Sensor Solutions

The engine is the heart of the IC power articulating boom lift, and it is also the most common source of diagnostic codes. Faults in this category usually stem from sensors reporting data that falls outside of safety parameters.

Low Oil Pressure Codes

If your machine triggers a low oil pressure code, immediate inspection is required. While low oil levels are often the culprit, a faulty pressure switch is a frequent hardware failure.

• Deutz D2.9L4 Models: Utilize the 1262892GT Oil Pressure Sensor and its accompanying Oil Pressure Sensor O-ring (1262893GT).

• Perkins 404F Models: Use the Oil Pressure Switch (1252941GT).

• Ford MSG-425 Models: Use part number 215301GT.

High Engine Temperature Codes

Overheating can be caused by cooling system blockages or a failed sending unit.

• Diagnostic Tip: If the machine is cool to the touch but reporting a high-temp fault, the Temperature Sending Unit (34058GT) (found in Ford and Perkins configurations) likely needs replacement.

• Radiator Support: For physical cooling failures, ensure the Radiator Cap (65473GT) is maintaining pressure and check the integrity of the Radiator (110304GT).

Emission and EFI System Errors

Tier 4 and EFI engines monitor exhaust gas and air intake meticulously.

• Oxygen Sensor Faults: Ford LRG-425 EFI models often report codes related to the Oxygen Sensor (88450GT).

• Air Intake: Errors in the air-fuel mixture may point to a failed Air Temperature Sensor (52652GT) or a knock sensor issue (215309GT).

Tilt and Leveling System Errors

Safety is paramount in aerial work platforms. The Z-45/25 will lock out certain functions if the chassis is out of level or if the sensor system is compromised.

Tilt Alarm Indicator

When the machine is on a slope exceeding its safety rating, the 218165GT Red 12V Indicator Light will illuminate at both the platform and ground controls. If the machine is level but the light persists, the leveling system may require recalibration or a new kit.

• Level Sensor Kits: For CSA-compliant models, use the Level Sensor Kit (1264947GT).

• Wiring Integrity: Persistent tilt errors are often solved by replacing the 1260218GT Tilt Alarm Harness.

Boom and Jib Safety Faults: The Role of Limit Switches

Articulated lifts rely on a network of limit switches to "know" where the boom is in space. If a switch fails, the machine may report a code that prevents the boom from extending or the turntable from rotating.

• Primary Limit Switch: The most common switch used across many Z-45/25 serial ranges is the 88356-11205GT Limit Switch, often paired with the Roller Arm (97128GT).

• Platform Overload: If the platform is overloaded, the system will trigger a fault. Ensure the Load Sense Assembly (121848GT) is free of debris and functioning correctly on CE and Australian models.

Electrical and Start System Diagnostic Issues

When a machine fails to start or dies suddenly without an engine sensor code, the issue is often in the ignition or power management circuit.

• Ignition Start Module: The Ignition/Start Module (56057GT) is a critical component for Deutz and Perkins models. A failure here will prevent the engine from even cranking.

• Relay Failures: Diagnostic codes related to auxiliary power or the RPM solenoid are frequently solved by replacing the SPDT 12V Relay (34052GT) or the 15A Circuit Breaker (128829GT).

• Ground Jumper: Specifically for Perkins 404F-E22T models, a common ground-related electrical fault can be addressed by installing the 1288161GT Ground Jumper Cable.

Hydraulic System Faults and Filtration

Hydraulic-related codes often manifest as slow function movement or a "clogged filter" warning on the display.

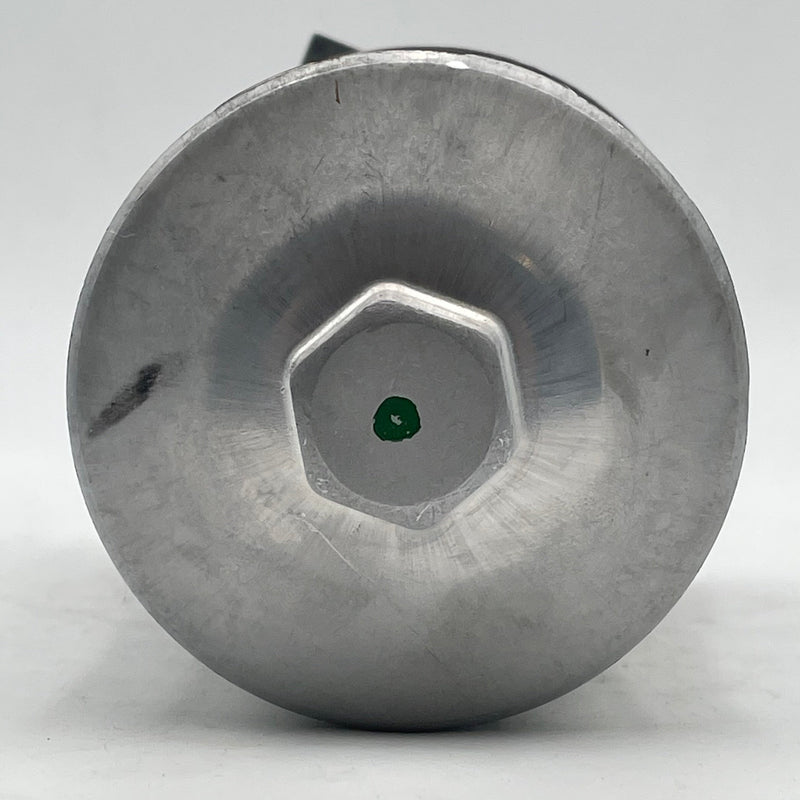

• Medium Pressure Filter: If the system reports high backpressure, check the Filter Assembly (1267807GT). The internal Element (1268229GT) should be replaced immediately.

• Return Filter: Always keep the Return Filter Kit (77353GT) on hand for annual maintenance to prevent contamination-related valve bank errors.

Comprehensive Maintenance: The Ultimate Solution to Error Codes

The best way to "solve" error codes is to prevent them through rigorous adherence to service intervals. Reliable Equipment Parts recommends utilizing pre-assembled service kits to ensure no sensor or filter is overlooked.

Why Shop with Reliable Equipment Parts?

Diagnostic codes for your Genie Z-45/25 are only as useful as the parts you use to fix them. At Reliable Equipment Parts, we specialize in the articulating boom lift components that keep your fleet moving.

Whether you need a 1251984GT LCD Display to read your faults or a 88356-11205GT Limit Switch to clear a safety lockout, we provide the exact Genie-compatible components listed in the original parts manuals. By using the part numbers identified in this guide, you can be confident that your repair will fit perfectly and last through the toughest job site conditions.

Visit our store today to find all the sensors, switches, and service kits mentioned in this troubleshooting guide. Keep your Z-45/25 running at peak performance with parts from the experts you can trust.
