Navigating the complex diagnostic systems of a Genie Z-60/34 articulated boom lift can be the difference between a quick fix and an afternoon of lost productivity. When your machine throws a fault code or suddenly cuts a function, it is communicating a specific hardware or logic failure. At Reliable Equipment Parts, we specialize in providing the high-quality Genie Z-60/34 replacement parts you need to clear those codes and get back to height safely.
This guide explores common fault indicators, the components likely causing the issue, and the specific part numbers required for various serial number ranges, from early units to those through SN 14370.
Understanding the Genie Diagnostic Interface
The primary tool for troubleshooting the Z-60/34 is the Ground Control Panel, which features a dedicated Ground Control Decal (30084GT) to help operators identify function symbols. For machines equipped with advanced diagnostics, the Fault Code Decal (82243GT) is a critical resource that should be present on every machine for immediate field reference.
If your machine is throwing a fault, your first step should always be to consult the Pre-Operation Decal (29791GT) and ensure the Operator's Manual (28176GT) is in the storage container.
1. Control System and PCB Faults: The ALC-500
Modern Z-60/34 models rely on the ALC-500 control system. The "brain" of the machine is the ALC-500 PCB Assembly (PN 235476GT). Faults related to communication errors or "unresponsive system" signals often trace back to this board or its associated wiring.
Symptom: Total loss of function or erratic behavior across all joysticks.
Solution: Inspect the PCB for signs of moisture or heat damage. Ensure the Assy, PCB ALC500 Z60 (PN 235476GT) is correctly configured for your specific model and serial number.
Pro Tip: If operating in cold climates, consider the Circuit Board Heater Option to prevent condensation-related faults on the electronics.
2. Engine Diagnostic Codes: Temperature and Pressure
The Z-60/34 uses a variety of engines, including Perkins 404-22, Deutz F4L 1011F, and Ford LRG-425 EFI. Each has a set of sensors that trigger safety shutdowns when parameters are exceeded.
High Water Temperature Fault:
The Component: For Perkins models, this is often triggered by the Water Temperature Switch (111028GT). On Ford models, check the Coolant Temp Sensor (33972GT).
The Fix: If the engine shuts down due to heat, inspect the Radiator (110304GT) for blockages and ensure the V-Belt (89765GT) is not slipping.
Low Oil Pressure Fault:
The Component: The Oil Pressure Switch (139624GT) is a common replacement item for Deutz engines to clear pressure faults. Perkins engines utilize the Oil Pressure Switch (111027GT).
The Fix: Verify oil levels and pressure with a manual gauge. If the pressure is within spec, the sending unit is likely faulty and requires replacement.
3. Drive and Traction Faults: Manifold Logic
If your Z-60/34 drives slowly or lacks torque on grades, the issue is often hydraulic rather than electrical. The Traction Manifold contains several valves that control flow to the drive motors.
Symptom: Machine won't move, or only moves in one direction.
The Component: Inspect the Flow Divider/Combiner Valve (52726GT) found in both 2WD and 4WD manifolds. This valve is responsible for equalizing flow to the drive wheels.

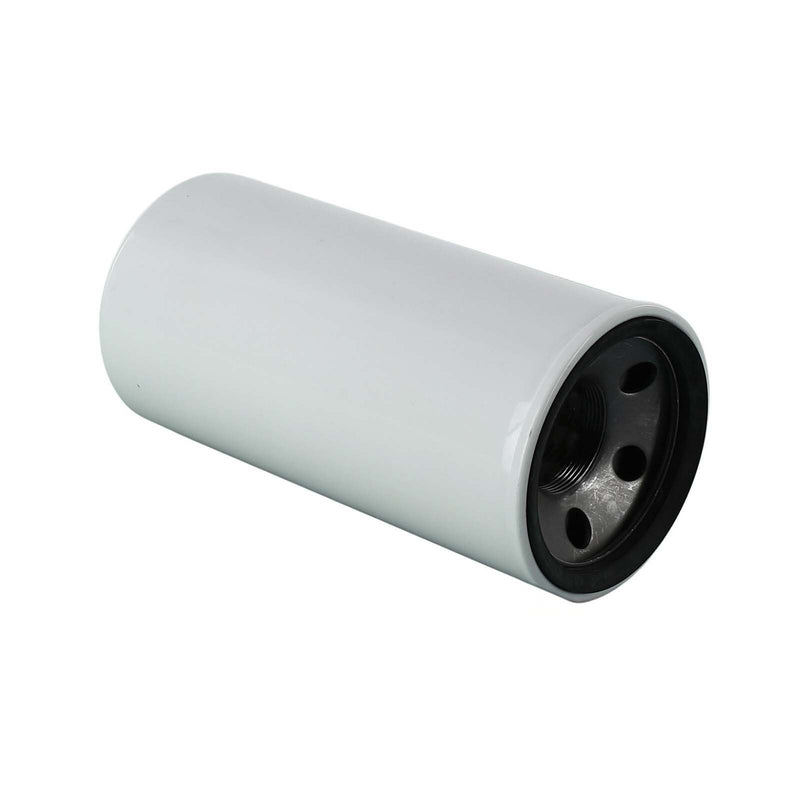

The Fix: Debris in the hydraulic oil can jam these precision valves. Replacing the Hydraulic Filter Element (46014GT) is the first step in preventative maintenance for the traction system.
Brake Release Issues: If the machine feels "stuck," the Brake/Motor Shift Manifold (102030GT) may have a failed Solenoid Valve (89769GT), preventing the parking brakes from retracting.
4. Boom Function Cut-Outs: Limit Switches and Joysticks
Safety logic on the Z-60/34 is designed to cut boom functions if the machine detects an unsafe position or a component failure.
Function Cut-Out at Full Extension:
The Component: The Limit Switch with Roller Arm (PN 88356-11B05GT) monitors the boom's position.
The Fix: If the boom stops moving as it extends, the roller arm may be damaged or the Boom Retract Harness (102175GT) may have a short.
Unresponsive Joystick Controls:

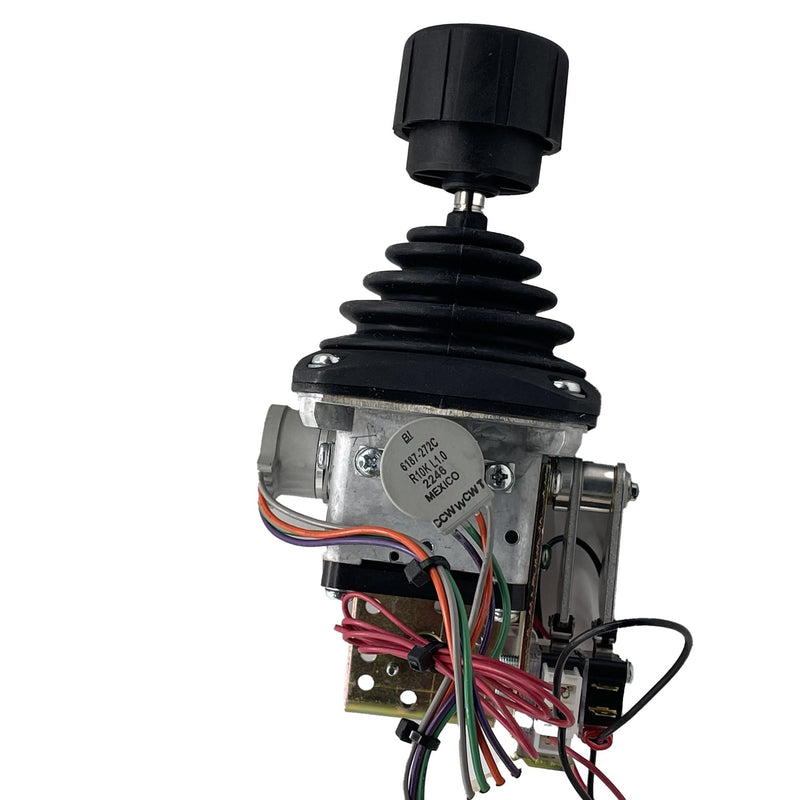

The Component: The Single Axis Proportional Joystick (PN 24495GT) or the Multi-Axis Joystick (PN 53073GT) are high-wear items.
The Fix: If a specific function (like "Boom Up") fails but others work, the Potentiometer (49870GT) or the Microswitch (19712GT) inside the joystick handle has likely reached the end of its life. Reliable Equipment Parts offers both OEM and cost-effective Aftermarket Joysticks (PN 24495HGT) to solve this quickly.
5. Steering and Oscillation Errors
For models with an oscillating axle, the machine must be able to lock the axle when the boom is elevated.
Oscillate Fault:
The Component: Check the Steer/Oscillating Manifold (32636GT).
The Fix: The Solenoid Valve (48684GT) controls the locking cylinders. If the axle fails to lock or unlock, this solenoid or the Check Valve (20318GT) in the circuit is usually the culprit.
6. Platform Safety and Overload (European/CE Models)
For machines operating under CE standards, the Platform Overload System is a frequent source of "fault 01" or load errors.
Symptom: Machine is powered on but won't perform any boom functions.
The Component: The Load Sense Module (128045GT) and the Load Support Assembly (89755GT).
The Fix: Ensure the platform isn't actually overloaded. If the code persists, the Load Limit Switch (94549GT) may need adjustment or replacement to recalibrate the weight sensing.
Conclusion: Get the Right Parts, Right Now
Troubleshooting the Genie Z-60/34 doesn't have to be a guessing game. Whether you are dealing with a faulty MAP Sensor (119475GT) on a Ford DSG-423 engine or a failed Secondary Boom Lift Cylinder (1264387GT), having the correct part number is half the battle.
At Reliable Equipment Parts, we stock everything from Seal Kits (89295GT) to complete Engine Harnesses (PN 89453GT). Our easy-to-search database allows you to find parts by serial number range, ensuring you get the perfect fit every time.
Ready to clear those codes? Visit our Reliable Equipment Parts today and browse our massive selection of Genie replacement components!
