Genie S-120 & S-125 Telescopic Boom Maintenance Guide

The Genie S-120 and S-125 telescopic boom lifts, including their high-capacity S-100HD and S-120HD counterparts, are engineering marvels designed for heavy-duty construction and shipyard applications. To keep these machines operating at peak performance and ensure the safety of your operators, a consistent and rigorous maintenance schedule is non-negotiable. This guide provides essential service reminders and technical tips based on the latest parts manuals to help you manage your fleet efficiently.

1. Engine Maintenance: The Heart of the Machine

The S-120 and S-125 series utilize several engine configurations, including Deutz TD2011-L04i, Cummins B3.3T, and various Perkins models. Each engine has specific filtration and belt requirements that are critical for longevity.

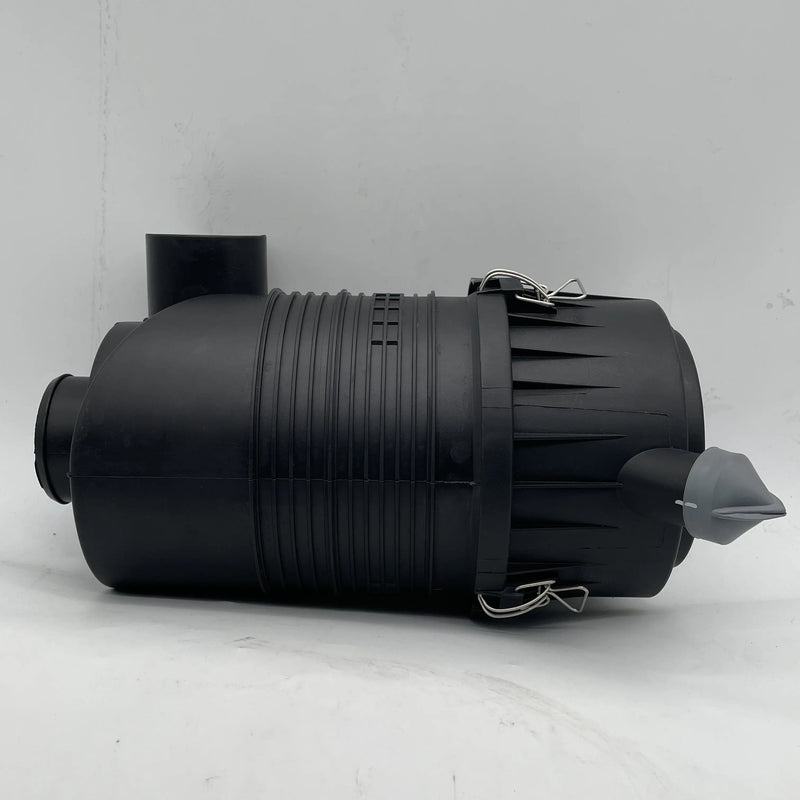

• Air Filtration: High-dust environments require frequent inspection of the air cleaner assembly. For Deutz models, ensure the Nelson air cleaner (81467GT) is fitted with a clean filter element (62425GT). Cummins B3.3T engines utilize a specialized primary element (146044GT) and secondary element (146045GT) to prevent contaminants from reaching the combustion chamber.

• Fuel System Integrity: Diesel engines are sensitive to water and particulate matter. Always replace the fuel/water separator filter (29560GT) on Deutz engines regularly. For Cummins configurations, the fuel filter (122709GT) must be monitored for clogging to prevent power loss.

• Belt Maintenance: A snapped belt can lead to overheating or loss of charging power. Check the serpentine belt (62437GT) on Cummins engines and the V-belts (58630GT) on Deutz models for signs of fraying or cracking. Perkins models, such as the 1104D-44T, often use paired V-belts (102598GT) that should be replaced as a set to ensure even tension.

2. Hydraulic System Health and Filtration

The hydraulic system powers every movement of the S-125, from driving the chassis to extending the massive boom. Maintaining fluid cleanliness is the single most important factor in preventing expensive manifold or pump failures [701.1, 710.1, 1018].

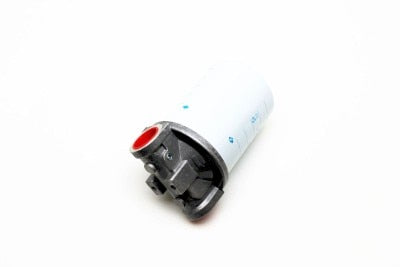

• Filter Replacement Intervals: Your service schedule should prioritize the return filter assembly (60508GT) and the high-pressure filters. If your machine is within the serial range to SN 954, use the mechanical pressure filter service kit (122773GT). For newer models, ensure the 5-micron paper element (1268229GT) is used for the charge filters.

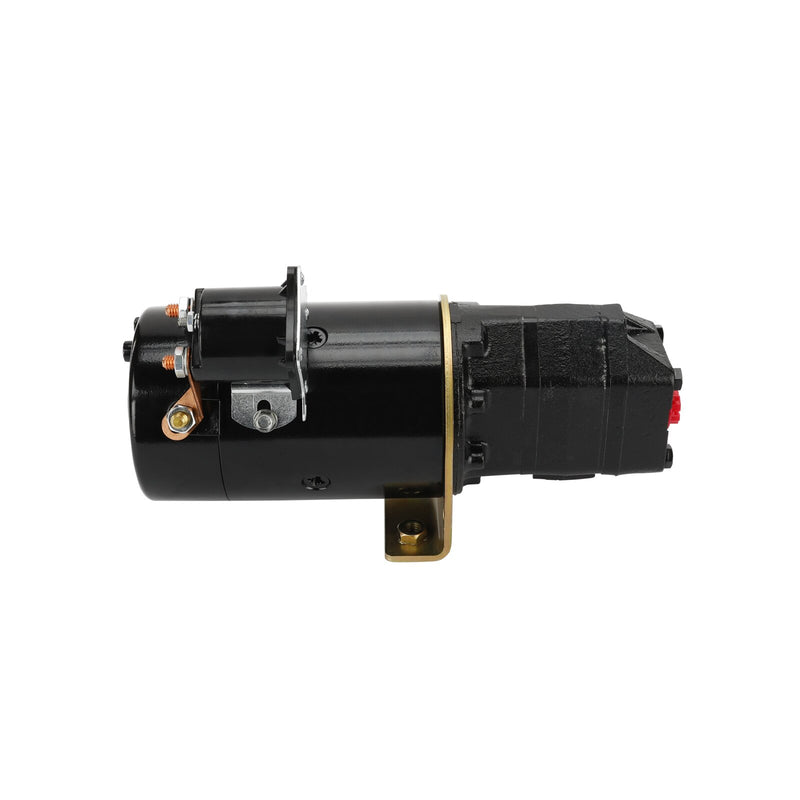

• Auxiliary Power Unit (APU): The APU pump (102710GT) is a vital backup system. Regularly check the shaft seal (147290GT) for leaks to ensure the backup system remains ready for emergency operation.

• Fluid Levels and Breathers: The 55-gallon hydraulic tank must be kept at the correct level using the liquid level gauge (226057GT). Always ensure the 3-micron reservoir breather (60559GT) is clear; a clogged breather can cause tank cavitation and pump damage.

3. Boom Components: Managing Wear and Friction

With reaching heights of up to 125 feet, the boom sections on these lifts are under immense structural stress. Wear pads are the primary defense against steel-on-steel friction.

• Wear Pad Inspection and Shimming: Wear pads, such as the 7 x 3-inch pads (50245GT) or the 5 x 1.5-inch pads (73461GT), must be inspected for thickness. Use shims (29080GT or 38620GT) as needed to maintain proper boom section tolerances and prevent "wandering" during extension.

• Boom Cables: The extension and retraction cables are critical safety components. For older S-120/125 models, consider the cable replacement kit (217709GT), which replaces all extension and retraction cables along with necessary hardware.

• Lubrication Points: Pay close attention to grease zerks on the boom pivot pins (61340GT) and cylinder rod ends (61341GT). Consistent lubrication prevents pin seizure and reduces the load on the hydraulic lift cylinders.

4. Chassis and Drive System Reminders

The drive chassis of the S-120 series features extendable axles and powerful drive hubs. This system allows the machine to maintain a stable footprint while remaining compact for transport.

• Extendable Axles: The inner axle wear pads (61309GT) and axle wear steel plates (61310GT) allow the axles to extend smoothly. Ensure the grease zerks (28646GT) on the axle covers are serviced to prevent the extendable sections from binding.

• Drive Hubs and Brakes: Most models use high-torque wheel drives with internal brakes (149287GT or 106756GT). Check the drain plugs (102684GT) for metal shavings during oil changes, which could indicate internal gear wear. If servicing the brakes, use the specific brake kit (106875GT) designed for the 1700TB series drive hubs.

• Steering Calibration: After replacing a steering angle sensor (107829GT) or a steer sensor subassembly (107830GT), the system must be recalibrated to ensure accurate steering tracking.

5. Electrical and Control Systems

The electrical system on a Genie Super Boom is complex, involving multiple harnesses and control modules.

• Battery Maintenance: These machines typically require a 12V start battery with 1000CCA (1306670GT or 1303586GT). Ensure terminal boots (51147GT or 18189GT) are in place to prevent accidental short circuits.

• Ground and Platform Controls: Inspect the keyswitch (66811GT) and the emergency stop buttons for functionality. On the platform, ensure the joysticks are moving smoothly and the decals (65182GT) are legible so operators can clearly identify function controls.

• Limit Switches: Safety limit switches, such as the operational limit switch (89109GT), prevent the machine from entering an unstable configuration. Check that the switch rollers (128636GT) are not flat-spotted or stuck.

6. Safety Decals: Your Visual Checklist

A machine is only as safe as its weakest link, and missing or faded decals are a major compliance issue.

• Legibility: Check all danger (28171GT) and warning (82472GT) decals. For S-120/125 machines in the ANSI market, consider a complete decal kit (825369GT or 825371GT) to refresh all safety information at once.

• Capacity and Range of Motion: Always ensure the Max Capacity decal (82601GT) and the Range of Motion chart (72152GT) are clearly visible to the operator.

7. Specialty Service Tips: Environmental Packages

Depending on your work site, your machine may be equipped with specialized accessories that require their own maintenance.

• Cold Start Packages: In freezing climates, check the oil pan heater (128274GT) and battery blankets (61245GT) before winter begins. Machines with the Deutz cold start package (1287847GT) should specifically use 5W-40 synthetic engine oil.

• Hostile Environment Protection: If working in sandblasting or high-grit areas, inspect the protective covers on the steering cylinders (60627GT) and platform leveling cylinders (60628GT). Ensure the boom wipers (T113096GT) are soft and making good contact with the boom sections to scrape away debris.

• Welder Options: For machines with the 12.5KW generator option, verify the drive oil diverter manifold (101516GT) is shifting correctly. Inspect the generator brushes (75425GT) for wear and replace them before they damage the armature.

Conclusion: Proactive Part Sourcing

By following these service reminders and using Genie genuine parts, you can maximize the uptime of your S-120 and S-125 boom lifts. Staying ahead of wear-and-tear items like filters, belts, and wear pads ensures that your machine remains a reliable asset on the job site for years to come.

For all your part needs, refer to your specific machine's serial number to ensure you are ordering the correct version of critical components, as many parts changed throughout the production run of these iconic Super Booms.
