Genie S-40 & S-45 Boom Lift Maintenance Guide & Parts

Genie S-40 and S-45 telescopic boom lifts are industry-standard machines known for their reliability and versatility on the job site. Whether you are operating a standard model, an XC (Xtra Capacity) unit, or the specialized Trax and HF (High Float) versions, consistent maintenance is the only way to ensure safety and longevity. This guide provides essential service reminders and technical tips based on official parts and service documentation to help you keep your equipment in peak condition.

Understanding Your Machine's Serial Number

Before ordering parts or performing service, you must identify your machine's specific serial number range. Genie S-40 and S-45 models have evolved significantly over the years, and parts that fit a machine from 2005 may not be compatible with a Tier 4 or Stage V model from 2024.

For instance, older S-40 and S-45 units typically fall within serial number ranges such as 831 to 7000 or S4003-7001 and upward. Newer high-capacity models like the S-40 XC and S-45 XC follow different sequences, such as those starting from S40XCH-104 or S45XCH-101. Always verify your serial number against your parts manual to ensure you are selecting the correct filters, belts, and engine components.

Engine Service Milestones: The 250 and 500-Hour Kits

Routine engine maintenance is the heartbeat of your boom lift. Depending on your engine type—Deutz, Perkins, or Ford—there are specific service kits designed to simplify your maintenance schedule.

• 250-Hour Service: For machines equipped with the Deutz D2.9L4 engine, use the engine service kit 1278708GT, which includes essential oil and fuel filters. If your machine runs the Ford MSG425 engine, the 250-hour kit is 1278709GT.

• 500-Hour Service: For Perkins 404 series engines, a comprehensive 500-hour service kit (160551GT) is recommended to replace high-wear components and ensure optimal combustion. Some newer manuals also categorize the Deutz D2.9 service kit (1278708GT) as a 500-hour requirement depending on operating conditions.

Critical Engine Components to Monitor

Beyond complete kits, individual components require regular inspection.

• Air Filtration: The air filter element (62420GT) is used across several engine models, including the Perkins 404F, Deutz D2.9, and Deutz D2011. A clogged air filter will reduce fuel efficiency and can lead to engine overheating.

• Belts and Tensioners: Inspect your fan and alternator belts for fraying or glazing. Common part numbers include the V-belt for Perkins 404 engines (89765GT) and the Deutz alternator fan belt (1262866GT).

• Spark Plugs and Ignitions: For gasoline and LPG models like the Ford MSG425, ensure you are using the correct spark plugs (215287GT) to prevent misfires.

Hydraulic System Health

The hydraulic system powers every move your boom lift makes. Contamination is the leading cause of hydraulic failure, making filter changes non-negotiable.

• Standard Hydraulic Filters: Most S-40 and S-45 models utilize the 60857GT filter element (Beta(5)=1000).

• High-Precision Filtration: For the turntable components, a 3-micron filter element (89616GT) is often required to protect sensitive valving.

• Medium Pressure Filters: Newer models may feature a medium-pressure filter assembly (1267807GT) with a 5-micron paper element (1268229GT).

Annual Inspection Requirements

Every boom lift must undergo a thorough Annual Inspection to remain compliant with safety regulations. To facilitate this, Genie offers an Annual Inspection Kit (1278710GT) for the S-40 and S-45, which includes the necessary filter elements to refresh the system. This is an ideal time to check the hydraulic tank breather and perform a full system pressure test using the diagnostic nipples located on the manifolds.

Drive Chassis: Tires, Hubs, and Trax

The drive chassis is subjected to extreme terrain. Maintenance needs vary based on your machine's configuration:

• Tire Maintenance: Check tire pressure and tread wear regularly. For air-filled or foam-filled tires, ensure the tire pressure decals (82586GT or 82587GT for High Float) are legible so operators can maintain correct levels.

• Torque Hubs and Wheel Drives: The wheel drives (such as the OMNI 139330GT or Fairfield 101584GT) are critical for propulsion. These hubs often have specific seal kits, such as 139972GT for OMNI gearboxes.

• Trax Option: If your machine is a Trax model, pay close attention to the idler assembly (219981GT) and the rubber tracks (219989GT). Tracks should be inspected for tension and debris buildup that could cause derailing.

Boom and Platform Components

As the primary lifting mechanism, the boom requires careful attention to wear surfaces and leveling systems.

• Wear Pads: The boom sections slide on wear pads that must be shimmed or replaced as they wear down. For the S-45 XC, the 1279188GT wear pads are standard. Shims like the 29080GT are used to maintain the tight tolerances required for smooth boom extension.

• Slave and Master Cylinders: The platform leveling system relies on the slave cylinder (81693GT) and the master cylinder (81692GT for S-40 or 81694GT for S-45). Inspect these for leaks and ensure the counterbalance valves are holding pressure correctly.

• Cable Track: The cable track protects the hoses and cables traveling up the boom. Inspect the track for broken links and consider the repair kits (like 1275075GT) if damage is found, rather than replacing the entire track.

Safety Decals: The Unsung Heroes of Service

A machine is not job-site ready if its safety decals are missing or unreadable. Decals provide vital information regarding capacity, hazard zones, and operation.

• Read the Manual: The most important symbol on the machine is the "Read the Manual" decal (82487GT).

• Danger and Warning: Ensure that the Fall Hazard (28181GT) and Electrocution Hazard (114390GT) decals are in place.

• Capacity Plates: For XC (Xtra Capacity) models, the specific capacity decals (like 1312384GT) must accurately reflect the dual-envelope limits of the machine.

Tips for Cold Weather and Specialized Environments

If you are operating in extreme conditions, standard maintenance may not be enough.

• Cold Start Package: For winter operations, ensure your Glow Plugs (e.g., 77736GT for Perkins or 31408GT for Deutz) are functioning. Machines may also be equipped with oil pan heaters (128274GT) or battery heaters.

• Hostile Environment Package: In high-dust environments (like sandblasting or masonry), use an air intake pre-cleaner (34959GT) to extend the life of your primary air filter.

Stocking List: Parts You Should Always Have on Hand

To minimize downtime, we recommend keeping a "Critical Spares" inventory at your shop. Based on the parts stocking lists, here are the top items to stock:

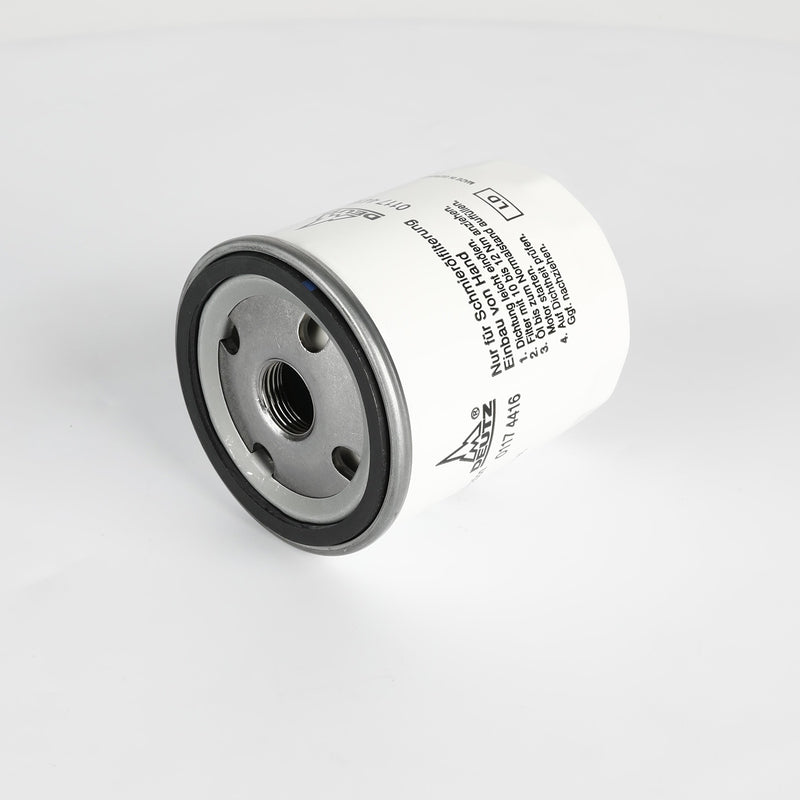

• Filters: Hydraulic (60857GT), Engine Oil (49924GT), and Air (62420GT).

• Electrical: Fuses (ATM 5AMP/7.5AMP) and common Relays (34052GT).

• Hardware: A Plug and Cap Kit (33994GT) is invaluable for sealing hydraulic lines during repairs to prevent environmental contamination.

Conclusion: Why Quality Parts Matter

Maintaining a Genie S-40 or S-45 is an investment in safety and productivity. Using genuine or high-quality aftermarket parts—from the PCV valve (119474GT) to the rotator seal kits (226542GT)—ensures that the machine operates within its original design parameters.

Always consult your specific Parts Manual for the latest revisions and part number updates. Regular service doesn't just prevent breakdowns; it protects your operators and keeps your business moving forward. Check our eCommerce store today for the full range of S-40 and S-45 maintenance parts!
