Genie S-60, S-65 & XC Series Maintenance Guide

Maintaining the peak performance and safety of your aerial work platforms, specifically the Genie S-60, S-65, S-60 HC, S-60X, S-60 XC, and S-65 XC models, requires a disciplined approach to preventative maintenance. These robust boom lifts are engineered for demanding environments, but their longevity depends on regular inspections and the timely replacement of critical components like filters, belts, and wear pads. Whether you are operating a standard 4WD model or a high-performance TraX variant, following the manufacturer's service guidelines is the best way to avoid costly downtime and ensure operator safety.

The Importance of Regular Service Intervals

One of the most effective ways to manage your maintenance schedule is by utilizing comprehensive engine service kits. For many of these models, Genie offers a 250-hour service kit (Part No. 1278708GT) specifically designed for machines equipped with the Deutz D2.9L4 engine. If your machine is powered by the Ford MSG425, you should look for the 250-hour kit under Part No. 1278709GT. These kits typically include the essential filters and components needed to keep your engine running efficiently between major overhauls.

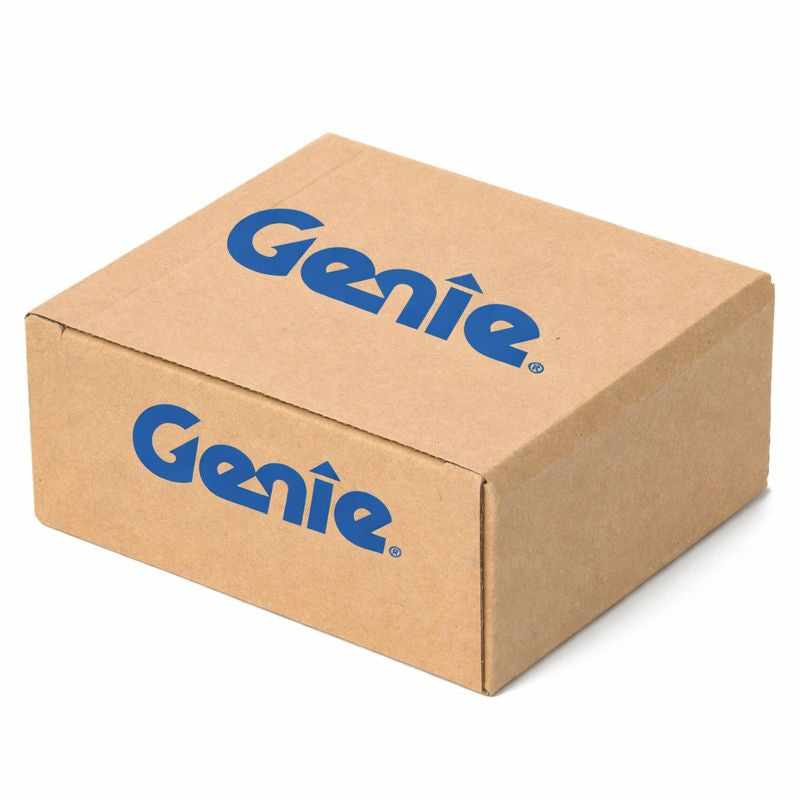

For more extensive maintenance, 500-hour service kits are also available, and it is highly recommended to perform a full annual inspection using the Annual Inspection Kit (Part No. 1285420GT) to ensure every system on the machine—from the hydraulics to the boom structure—is in top condition.

Engine Maintenance: Deutz, Perkins, and Ford

The engine is the heart of your boom lift, and specific maintenance requirements vary depending on the manufacturer and the Tier or Stage regulation of the engine.

Deutz Engine Care (D2.9L4 and TD2011 Models)

The Deutz D2.9L4 is a common power plant for the S-60 and S-65 series, and it requires specific attention to its filtration system. Always ensure you are using the Air Filter (Part No. 62420GT) and the Fuel Filter (Part No. 214228GT) to protect the internal engine components from contaminants. Oil changes should always include a new Oil Filter (Part No. 49924GT).

For Deutz TD2011-L04i models, additional maintenance parts like the Fuel/Water Separator Filter (Part No. 29560GT) and the V-Belt (Part No. 58630GT) are vital for preventing overheating and fuel system issues. If you are operating in colder climates, checking the Glow Plugs (Part No. 1262870GT) is a critical step in your winter prep routine.

Perkins Engine Maintenance (404D-22 and 404F-22)

Owners of machines with Perkins engines must also adhere to strict filter replacement schedules. The Perkins Fuel Filter (Part No. 62421GT) and Air Filter (Part No. 62420GT) should be replaced regularly. For Tier 4 Perkins 404F models, you may also need a specialized Alternator Fan Belt (Part No. 1262866GT).

Ford MSG-425 EFI and DSG-423 Maintenance

For spark-ignited engines like the Ford MSG-425, you must monitor the ignition system. This includes replacing Spark Plugs (Part No. 215287GT) and checking the Fan Drive Belt (Part No. 215274GT). In some cases, older Ford DSG-423 serpentine belts are no longer available and must be updated with an Automatic Belt Tensioner Kit (Part No. 1316077GT).

Hydraulic System Reminders

The hydraulic system operates the boom's lift, extension, and rotation functions, making it one of the most hardworking systems on the machine. Hydraulic filters are your first line of defense against system wear. The Medium Pressure Filter Element (Part No. 1268229GT), used on assembly 1267807GT, should be inspected and replaced as part of your regular service. Additionally, elements like the Beta filter (Part No. 60857GT) found in many return and pressure lines must be kept clean to prevent valve damage.

If you notice a decrease in performance or a leak, Genie provides specialized Seal Kits for almost every major hydraulic component. For example, if you are servicing the 15K Platform Rotator, depending on your serial number, you will need either 226542GT (from SN 21919) or 147370GT (to SN 21918). Always verify your serial number before ordering hydraulic seals to ensure a proper fit.

Boom and Chassis Components

The physical structure of the boom and the chassis requires periodic inspection for wear, especially at friction points.

Wear Pads and Shims

Wear pads (Part No. 77718GT) are located throughout the boom sections to facilitate smooth extension and retraction. Over time, these pads wear down and may require Shims (Part No. 34344GT or 29080GT) to maintain the proper tolerances between boom sections. Replacing these before they wear completely through is vital to prevent metal-on-metal contact and structural damage.

Tires and Tracks

Your machine's stability depends on its tires or tracks. Many S-60 and S-65 units use foam-filled tires (e.g., Part No. 106647GT or 106648GT) to prevent flats on the job site. If your machine is a TraX model, you must inspect the rubber tracks and drive components regularly. Ensure the TraX Hub Seals (Part No. 139179GT) are intact to prevent lubrication loss in the final drives.

Electrical System and Cold Start Packages

Electrical failures often stem from poor battery maintenance or worn wiring harnesses. Keep Battery Cables (Part No. 88801GT) clean and free of corrosion. If you are replacing a battery, a heavy-duty 950CCA model (Part No. 1303581GT) is often used for these large booms.

For those operating in freezing temperatures, a Cold Start Package is an essential upgrade or maintenance item. These systems often include Battery Blankets (Part No. 28853GT) and Engine Block Heaters to ensure the machine starts reliably on cold mornings.

Keys for Successful Parts Ordering

When you are ready to purchase replacement parts for your Genie boom lift, keep these three tips in mind to ensure accuracy:

• Have Your Serial Number Ready: Most parts, especially electrical harnesses and hydraulic manifolds, change based on the serial number range. A part that fits a SN 29000 machine may not fit a SN 31000 machine.

• Verify Engine Specs: Due to Tier 4 and Stage V regulations, engine parts are extremely specific. You will often need both the machine serial number and the engine serial number to get the correct alternator, starter, or ECU.

• Check for Kits: Often, buying a service kit is more economical and ensures you have all the related gaskets and O-rings needed for a job. For example, the Pump Shaft Seal Kit (Part No. 107842GT) includes multiple components that should all be replaced at once.

Conclusion

Proactive maintenance of your Genie S-60 or S-65 series boom lift is the only way to protect your investment and keep your operators safe. By regularly replacing filters, monitoring engine belts, and inspecting wear pads, you can significantly extend the life of your equipment. Always refer to your specific Parts Manual and use genuine Genie parts to maintain the factory standards of your machine.

If you are looking for high-quality replacement parts, our Reliable Equipment Parts carries a wide range of Genie-compatible filters, seals, and service kits to help you get back to work faster. Check your serial number today and find the exact parts you need to keep your boom lift soaring!
