Genie S-80, S-80X & S-85 Telescopic Boom Maintenance Guide

Running a successful job site requires machinery that is as reliable as your team. The Genie S-80, S-80X, and S-85 telescopic booms are industry workhorses, known for their incredible reach and durability. However, even the toughest equipment requires dedicated upkeep to prevent costly downtime. At Reliable Equipment Parts, we understand that your priority is performance. This comprehensive guide covers essential service reminders and maintenance tips to keep your Genie lift in peak condition.

Understanding Your Machine: S-80 vs. S-80X vs. S-85

Before ordering replacement parts, it is vital to know the specific requirements of your model. While many components are shared across the series, there are key differences:

• Genie S-80 & S-80X: These are the standard telescopic models, with the S-80X often featuring high-capacity configurations.

• Genie S-85: This model includes a jib boom, providing additional flexibility for positioning the platform.

• Serial Number Matters: Genie frequently updates components based on serial number (SN) ranges. Always have your SN ready, especially for Tier 4 engine components and hydraulic manifolds.

Preventive Maintenance: The 250-Hour Milestone

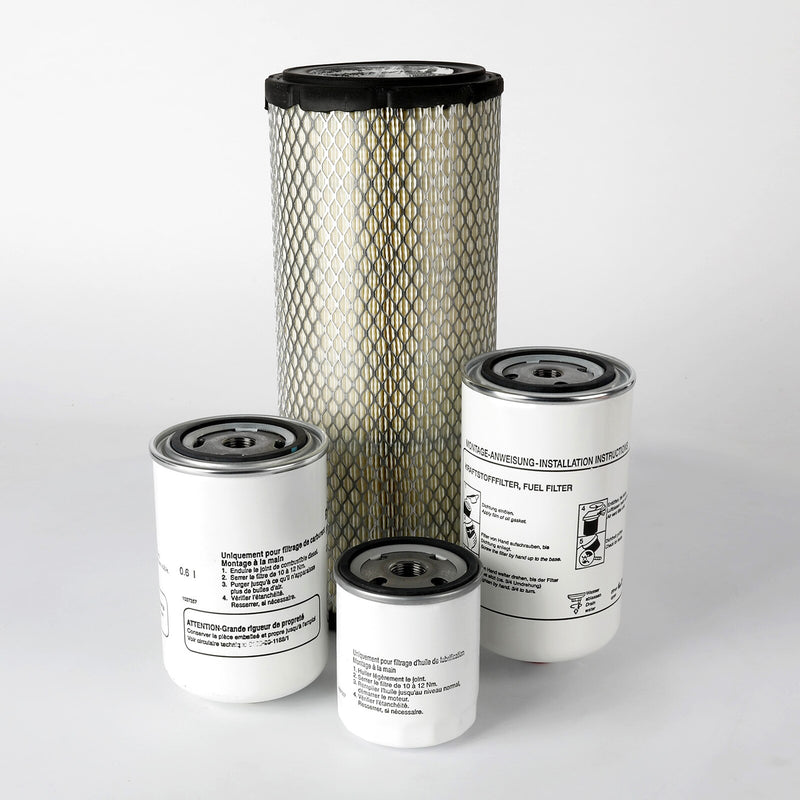

Regular inspections are the backbone of equipment longevity. For machines powered by the Deutz TD2.9 engine, a dedicated 250-hour engine service kit (Part No. 1278714GT) is available to streamline your maintenance routine. This kit typically includes the necessary filters to keep your engine running smoothly under heavy loads.

Essential Filter Replacements

Clean air, fuel, and oil are non-negotiable for engine health. Using genuine or high-quality compatible aftermarket filters ensures that contaminants do not reach critical engine internals.

1. Engine Oil Filters

• Deutz Engines: Use 49924GT for Genie genuine oil filters. If you are looking for a compatible aftermarket replacement, 1255653GT is an excellent choice.

• Perkins Engines: For the Perkins 404D/F-22T models, ensure you use oil filter 1262047GT. Older Perkins 704-30 models require 62422GT.

• GM Engines: The GM 3.0L engine utilizes 65623GT for oil filtration.

2. Air and Fuel Filters

• Air Cleaners: The air cleaner element for many Deutz and Perkins models is 62420GT. For hostile environments, secondary elements like 61325GT provide an extra layer of protection.

• Fuel/Water Separators: To protect your fuel system from moisture, use 29560GT for Deutz 1008 models or the updated aftermarket version 1254826GT.

Hydraulic System Health: The Lifeline of Your Boom

The hydraulic system powers everything from drive functions to boom extension. Maintaining this system involves more than just checking fluid levels; you must monitor the health of your manifolds and filters.

High-Pressure and Return Filters

• High-Pressure Filter: Use 60334GT for the high-pressure SAE-12 filter assembly to protect sensitive valves from debris.

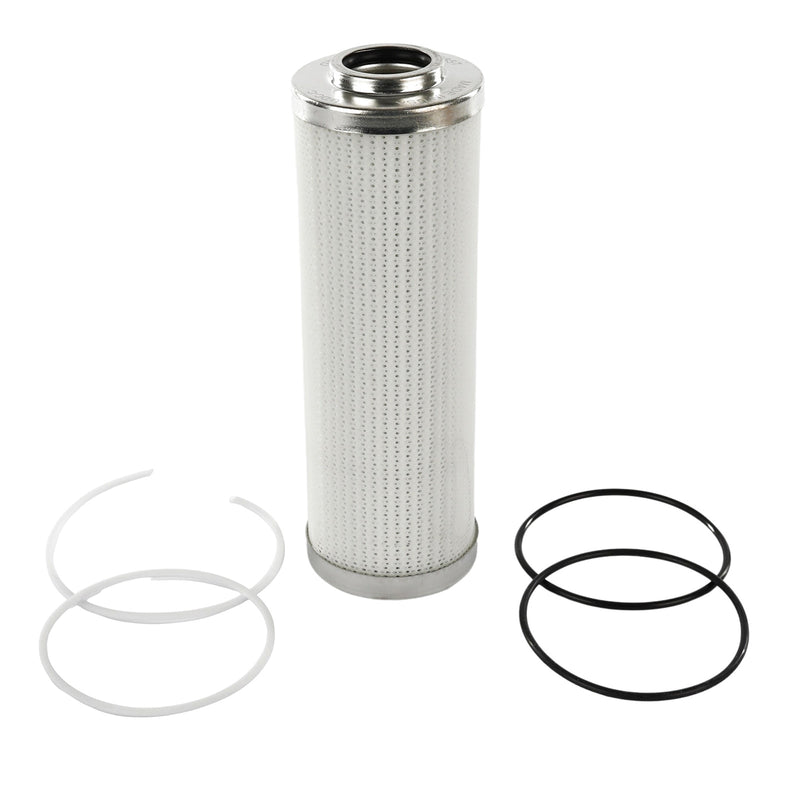

• Filter Elements: The standard hydraulic filter element for all models is 60857GT.

Manifolds and Control Valves

The Traction Manifold is critical for 2WD and 4WD drive performance. For older 4WD models where Part No. 88784 or 81055 is no longer available, the complete replacement is 139712GT. Keeping seal kits on hand, such as 28750GT (O-ring kit for all products), allows for quick field repairs of minor leaks.

Boom and Platform Components: Precision and Safety

The boom structure is subject to significant stress. Regular lubrication and wear pad inspections are essential to maintain smooth operation.

Wear Pads and Shims

Wear pads prevent metal-on-metal contact as the boom extends.

• Standard Wear Pads: Common parts include 30138GT (5 x 1.5) and 73461GT (5 x 1.5 x .875).

• Adjustment Shims: When the boom develops play, use shims such as 29080GT or 38620GT to restore factory tolerances.

Cables and Cylinders

The extension and retraction of the boom rely on a system of cables. If you notice fraying, the Cable Replacement Kit (Part No. 217710GT) provides all the necessary hardware for a full overhaul. When installing these, using the Cable Grip Tool (Part No. 94510GT) is highly recommended for a safe and efficient process.

Platform Controls and Joysticks

The operator's ability to control the machine relies on the integrity of the joystick controllers.

• Single Axis Joysticks: For boom extend/retract functions, use the OEM 24495GT or the high-quality aftermarket replacement Part No. 24495HGT.

• Protection: Protect these controls with Hostile Environment Covers to prevent damage from rain, sun, and debris.

Belts and Cooling: Keeping the Engine Cool

Worn belts can lead to alternator failure or engine overheating.

• V-Belts: The Deutz F4L2011 often uses 102589GT.

• Fan Belts: For updated Deutz 2.9L models, look for 1262866GT.

• Radiators: If your cooling system is failing, the standard radiator for Ford and Perkins models is 110304GT.

Safety First: Decals and Alarms

Safety is not just about mechanics; it is about communication. Faded or missing decals can lead to operator error and site violations.

• Decal Kits: We offer complete kits with either words or symbols, such as 823296GT (S80 Complete Word Kit) or 1279574GT for older models.

• Alarms: Ensure your Operator Protection Alarm is functioning. Options vary by date, with the Lift Guard Contact Alarm becoming standard on many models after January 2017 [7, 831.2].

Summary Service Checklist

To ensure your Genie boom lift stays in the field, follow this quick reference checklist:

• Daily: Check engine oil, hydraulic fluid levels, and inspect for leaks.

• Every 250 Hours: Perform a full engine service using the 1278714GT kit (for Deutz).

• Monthly: Inspect boom wear pads and adjust shims as needed.

• Annually: Replace all hydraulic filters and inspect cable tension.

For all your Genie S-80, S-80X, and S-85 parts needs, trust Reliable Equipment Parts. We carry everything from oil filters (49924GT) to drive motors (24668GT) and seal kits (215623GT) to keep your equipment moving.

Disclaimer: Always consult your specific machine's Service and Repair Manual before performing any maintenance. Ensure all work is performed by a qualified technician.
