Maintaining your Genie articulated boom lift is essential for job site safety, machine longevity, and optimal performance. At Reliable Equipment Parts, we understand that downtime is costly, which is why we provide high-quality replacement parts for the Genie Z-34/22 and Z-40/23 series. Whether you are operating a Z-34/22N, Z-34/22DC, Z-34/22BE, or an IC model, following a strict service schedule is the best way to protect your investment. This guide covers critical service reminders and maintenance tips, highlighting the specific Genie parts you need to keep your machine in peak condition.
Engine Maintenance for Kubota and Perkins Power Plants

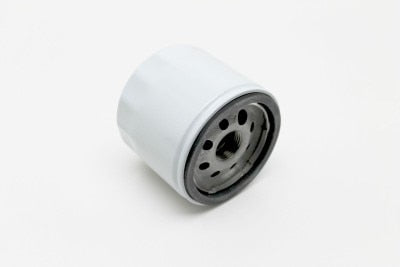

The heart of your Genie Z-34 IC or Bi-Energy lift is often a high-performance Kubota or Perkins engine. For models equipped with the Kubota Z482, WG972, or D-1105 engines, routine oil and filter changes are mandatory to prevent internal wear. We recommend using the Kubota Oil Filter (866400GT), which is a standard stocking part for these engines.
Air cleaner maintenance is equally vital, especially in dusty construction environments. You should regularly inspect and replace the Air Filter (52867GT) or the Kubota Air Cleaner Element (866127GT) to ensure the engine is breathing clean air. For those running Perkins 403F-11 engines, always keep a spare Perkins Oil Filter (94762GT) and Fuel Filter (62421GT) on hand.
Don't overlook the cooling system; a frayed belt can lead to overheating and catastrophic engine failure. Check your Fan Belt (part 52816GT for many Kubota models or 839209GT for the D-1105) for cracks or glazing during every pre-operation inspection. If you operate in colder climates, consider installing a Freeze Plug Heater (42489GT) or a Battery Blanket (128853GT) to assist with cold starts.
Hydraulic System Health and Filter Replacement
The hydraulic system powers every movement of your Genie articulated boom, from steering to platform rotation. Contaminated hydraulic fluid is the leading cause of component failure in aerial lifts. The Hydraulic Filter Element (44788GT) should be replaced according to the manufacturer's intervals to remove microscopic debris.
Leaking cylinders are not just a mess; they are a significant safety hazard. If you notice drifting or oil seepage on your Primary Lift Cylinder or Extension Cylinder, it is time for a seal kit. Reliable Equipment Parts offers the Seal Kit (94258GT) for primary lift cylinders and the Seal Kit (94255GT) for extension cylinders to restore full hydraulic pressure.
For the Genie Z-40/23N, maintaining the Function Manifold (110338GT) is crucial for smooth boom operation. Regularly check the Solenoid Valves and their respective Coils (119827GT) to ensure responsive controls. If your platform rotation feels jerky, inspect the Platform Rotator Manifold and ensure the Counterbalance Valves are functioning correctly.
Boom Maintenance: Wear Pads and Pins
The structural integrity of the Genie boom relies on smooth sliding surfaces and secure pivot points. Boom Wear Pads are sacrificial components designed to wear down so that the steel boom tubes do not. If you notice excessive "play" or shaking while extending the boom, your wear pads likely need replacement.
Common wear pad part numbers include:
-
101429GT (6 x 2 x 0.6875 inches).
-
74044GT (6 x 2 x 0.4375 inches).
-
1262353GT (5 x 1.5 x 0.72 inches).
Properly shimming these pads using Shims like part 74134GT or 42502GT is necessary to maintain the correct tolerances. Additionally, ensure all Boom Pins, such as the 1.25-inch Threaded Pin (50584GT) or the 2.00-inch Diameter Pin (88676GT), are greased regularly via their respective Grease Zerks (22794GT).
Drive Chassis: Tires, Hubs, and Brakes
The Genie Z-34/22 and Z-40 series are designed for maneuverability, but that depends on the condition of the drive chassis. Check your Tire and Wheel Assemblies for chunks of missing rubber or sidewall damage. We stock various options, including Solid Non-Marking Tires (94909GT) for indoor use and Foam-Filled Rough Terrain Tires for outdoor applications.
Your Wheel Drives (Torque Hubs) require periodic gear oil changes to prevent internal gear damage. If a hub begins to leak, immediate action is required. The Seal Kit (1286600GT) and Bearing Kit (1286601GT) are essential for repairing Wheel Drive 106148GT or 107712GT.
For Electric (DC) models, battery health is paramount. Keep battery terminals clean and free of corrosion, and always secure the batteries with a proper Battery Hold Down (60078GT). If your machine refuses to move, check the high-amp Fuses, such as the 200 Amp Fuse (18576GT) or the 500 Amp Fuse (43179GT).
Platform Controls and Safety Systems
The operator's interface must be reliable and intuitive. The Joystick Controller (42032GT) is one of the most frequently used parts on the machine and can eventually fail due to wear or environmental exposure. If the joystick boot is torn, replace it immediately with part 43038GT to prevent moisture from damaging the internal electronics.
Safety Decals are not just suggestions; they are required for regulatory compliance and operator safety. If your decals are faded, torn, or missing, Reliable Equipment Parts offers complete Decal Kits (such as 72978GT for the Z-34 or 119874GT for the Z-40) to bring your machine back into compliance.
Consider enhancing safety with accessories like the Flashing Beacon (56704GT) or the Lift Guard Contact Alarm (1279136GT), which provides an extra layer of protection for the operator. For machines working in harsh environments, Hostile Environment Kits—including Cylinder Bellows (128838GT) and Boom Wipers (128677GT)—are indispensable for keeping grit and grime out of sensitive areas.
Conclusion: Trust Reliable Equipment Parts for Your Genie Needs
Proper maintenance of your Genie Z-34/22 or Z-40/23 boom lift is a multi-faceted process involving the engine, hydraulics, structural components, and safety systems. By staying on top of routine service and using high-quality Genie replacement parts, you ensure that your lift remains a safe and productive tool on every job site.
At Reliable Equipment Parts, we are committed to being your one-stop shop for all your aerial lift needs. Visit our website today to browse our extensive catalog and find the exact part numbers mentioned in this guide. Keep your equipment reliable—choose Reliable Equipment Parts!
